Wall Cabinet Features:

Cabinet Details

Base Cabinets:

• Standard base cabinets are 34 1/2” high and 24” deep, have working drawers, one base shelf and one half-shelf.
• Sink bases have one base shelf and false drawer fronts.
• Sink fronts are fronts only, with a toe kick attached.
• Three-drawer base cabinets have one 3 1/4”H and two 8”H drawers.
• Minimum cabinet width and depth for drawers: 12”
• Cabinets less than 12” wide have a solid door (raised, flat panel, cathedral and arch not available).
• Toe kick cutout: 4-1/2” high x 3" deep (non-stain grade material; when finishing, order matching toe kick or base moulding)

Vanities:

• Standard vanities are 31” high and 21” deep and have false drawer fronts. Tall vanities are 34 1/2” high.
• Narrow (shallow) vanities are 31” or 34 1/2” high and 18” deep and have false drawer fronts.
• Three-drawer vanities are 31”or 34 1/2” high and 21” deep, and have one 3 1/4”H and two 5”H drawers.
• Combination vanities are 31” or 34 1/2” high and 21” deep.
• 30” wide and 36” wide combination vanities have two false drawer fronts, two working drawers and one door.
• 48”, 54” and 60” wide combination vanities have two false drawer fronts, three working drawers and two doors. 42” wide combination vanities are the same, except they only have one false drawer front.
• Toe kick cutout: 4-1/2” high x 3" deep (non-stain grade material; when finishing, order matching toe kick or base moulding)

Wall Cabinets:

• Standard wall cabinets come in 15”, 18”, 24”, 30”, 36” and 42” heights with a 12”or 15” depth.
• 15” and 18” high wall cabinets have no interior shelves
• 24” high wall cabinets have one adjustable shelf.
• 30” and 36” high cabinets have two adjustable shelves.
• 42” high cabinets have three adjustable shelves.
• Maximum height for wall cabinets: 48”
• Smallest door size for Cathedral/Arch doors: 9-1/2”w X 12”h
• Cabinets less than 12” wide have a solid door (raised, flat panel, cathedral and arch not available).

Our premium grade kitchen and bath cabinets are constructed with 1/2" thick Birch plywood sides. If a cabinet side needs to be exposed and stained, it would be advisable to select one of the side options: stain-grade side, 3/4" flush stain-grade side, or stain-grade end door. These options replace the standard Birch plywood with stain-grade plywood to match the front of your cabinets. Another option is to cover the plywood sides with a 1/4" thick end panel skin or plain or beadboard material. Since the face frame of cabinets are about 1/4 of an inch wider than the sides, the end panels will make the sides look flush with the front.

Doors and Drawer Fronts

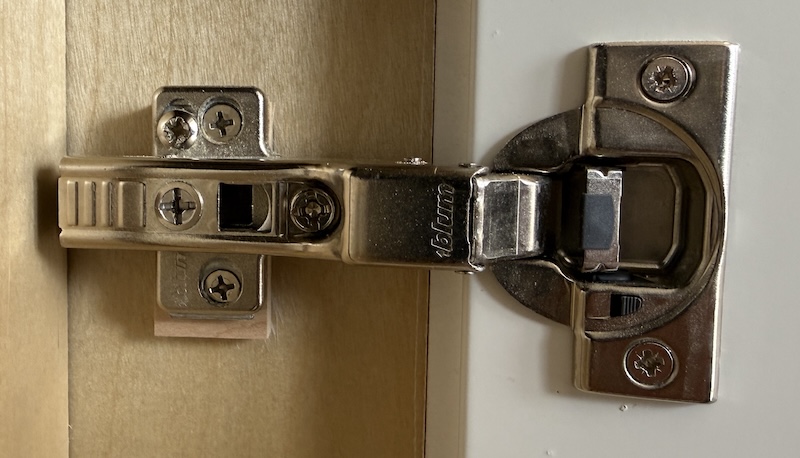

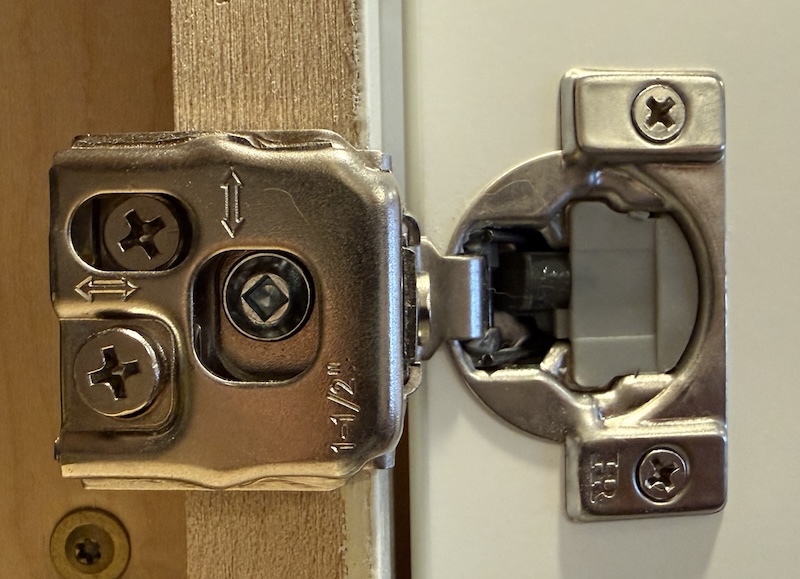

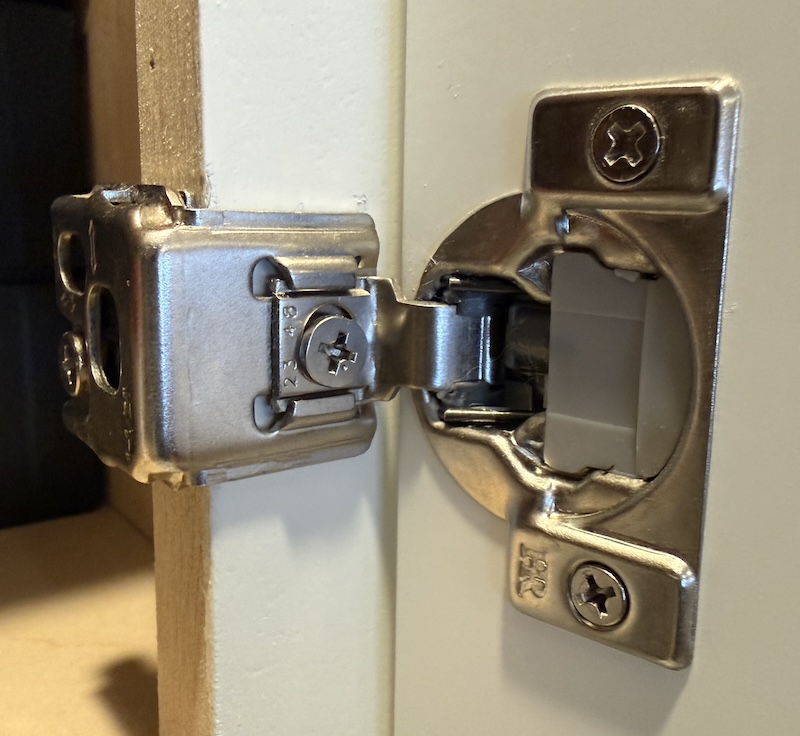

Kitchen and vanity cabinets come standard with hidden "Euro" 35mm door hinges with either a 1/2-inch overlay or a 1-1/4-inch overlay (for the full-overlay door styles). They allow the door to open 110 degrees. Soft-close hinges are optional. Doors will not come with knobs, but you can purchase knobs and pulls on our accessories page or get them from another source. No holes will be drilled into your kitchen cabinet doors, so you can buy any style of hardware you want. For additional choices, we recommend Rockler.com and other stores on our links page for a great selection of cabinet pulls.

Kitchen cabinets with flat-panel, raised-panel, or beadboard doors have a beveled outside edge using the L-edge profile (below left). The Reverse-bevel edge is a non-standard option. Reverse raised-panel doors appear to have flat-panels because the raised portion has been flipped to the inside or the door. Shaker doors have square edges. See the door styles page for more details.

Drawers and Shelves:

Drawer boxes feature 5/8" thick sides and English-dovetailed joints and dados, locking the bottom in place and giving each drawer added strength and durability. See the cabinet options page for more details. Wall cabinets are pre-drilled every 2-1/2" for adjustment of the 3/4" thick shelving and come standard with brass shelf pins.
